ui.Chart.PIEFeature

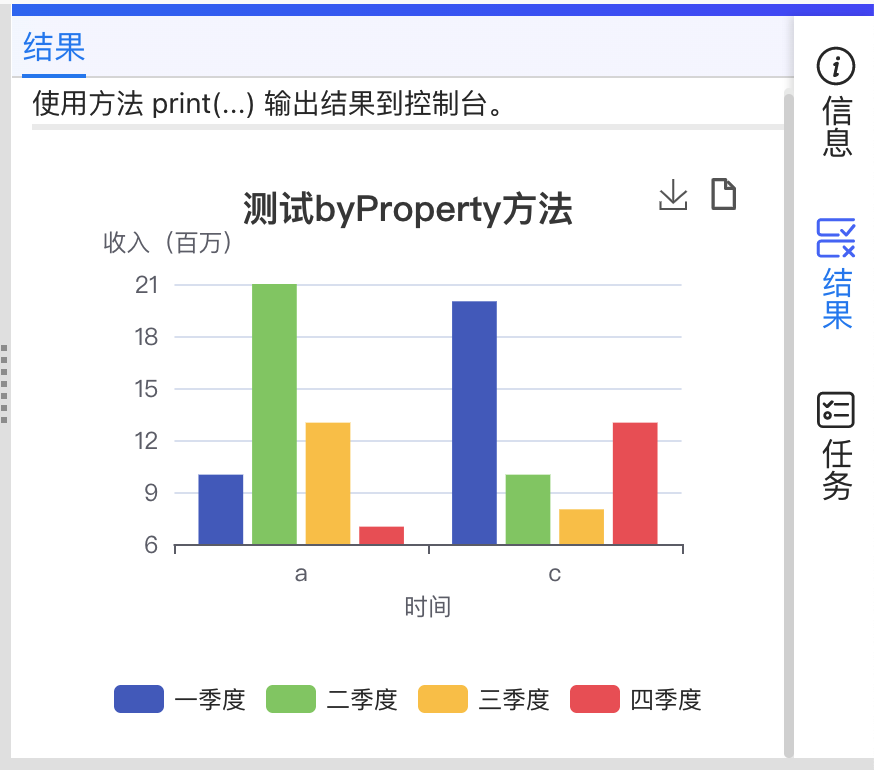

ui.Chart.PIEFeature.byProperty

通过制定矢量数据的属性property绘制

函数	返回值
ui.Chart.PIEFeature.byProperty(feature,xProperty,seriesProperty)	ui.Chart.PIEFeature.byProperty

参数	类型	说明
feature	Object|List	feature、featureCollection、list、矢量数据或者列表
xProperty	String|List	字符串、x轴参数（矢量数据的属性）
seriesProperty	String	分组依据的属性名称

var fCol = pie.FeatureCollection([
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '一季度',
        a: 10,
        b: 12.1,
        c: 20
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '二季度',
        a: 21,
        b: 9,
        c: 10
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '三季度',
        a: 13,
        b: 5.1,
        c: 8
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '四季度',
        a: 7,
        b: 9.1,
        c: 13
    })
]);
var chart = ui.Chart.PIEFeature.byProperty({
    features: fCol,
    seriesProperty: "label",
    xProperties: ["a", 'c']
}).setChartType("column")
    .setSeriesNames(['一季度', "二季度", "三季度", "四季度"])
    .setOptions({
        title: {
            name: "测试byProperty方法"
        },
        xAxis: {
            name: "时间"
        },
        yAxis: {
            name: "收入（百万）"
        },
        series: {
            0: {
                showSymbol: true,
                symbolSize: 4,
                lineColor: "red"
            },
            1: {
                showSymbol: true,
                symbolSize: 4,
                lineColor: "blue",
                smooth: true
            }
        }
    });
print(chart)

ui.Chart.PIEFeature.byFeature

通过制定矢量数据的feature绘制

函数	返回值
ui.Chart.PIEFeature.byFeature(features,xProperty,yProperty)	ui.Chart.PIEFeature.byFeature

参数	类型	说明
features	Object|List	feature、featureCollection、list、矢量数据或者列表
xProperty	String|List	x轴属性参数
yProperty	List	列表，y轴参数（矢量数据的属性）

/**
 * @File    :   ui.Chart.PIEFeature.byFeature
 * @Time    :   2022/2/14
 * @Author  :   piesat
 * @Version :   1.0
 * @Contact :   400-890-0662
 * @License :   (C)Copyright 航天宏图信息技术股份有限公司
 * @Desc    :   通过制定矢量数据的feature绘制
 */
var fCol = pie.FeatureCollection([
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '一季度',
        a: 10,
        b: 12.1,
        c: 20
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '二季度',
        a: 21,
        b: 9,
        c: 10
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '三季度',
        a: 13,
        b: 5.1,
        c: 8
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '四季度',
        a: 7,
        b: 9.1,
        c: 13
    })
])
var chart = ui.Chart.PIEFeature.byFeature({
    features: fCol,
    xProperty: "label",
    yProperties: ["a", "b"]
    // yProperties: null
}).setChartType("line")
    .setSeriesNames(['A', "B"])
    .setOptions({
        title: {
            name: "测试byFeature方法"
        },
        xAxis: {
            name: "时间"
        },
        yAxis: {
            name: "收入（百万）"
        },
        series: {
            0: {
                showSymbol: true,
                symbolSize: 4,
                lineColor: "red"
            },
            1: {
                showSymbol: true,
                symbolSize: 4,
                lineColor: "blue",
                smooth: true
            }
        }
    })
print(chart)

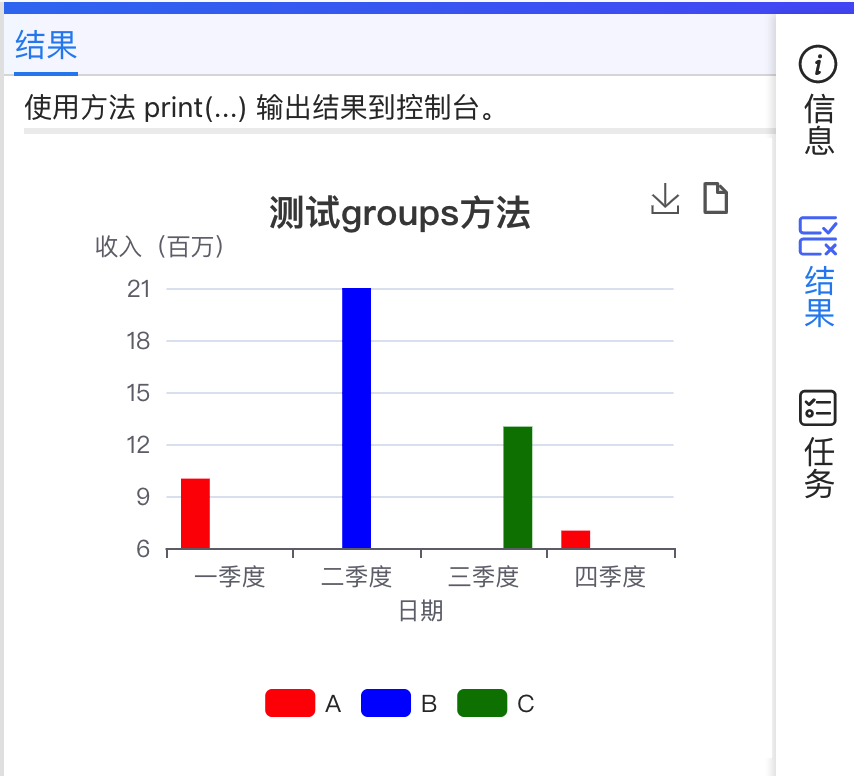

ui.Chart.PIEFeature.groups

分组绘制

函数	返回值
ui.Chart.PIEFeature.groups(features,xProperty,yProperty,seriesProperty)	ui.Chart.PIEFeature.groups

参数	类型	说明
features	Object|List	feature、featureCollection、list、矢量数据或者列表
xProperty	List	x轴属性参数
yProperty	List	y轴属性参数
seriesProperty	String	分组依据的属性名称

/**
 * @File    :   ui.Chart.PIEFeature.groups
 * @Time    :   2022/2/14
 * @Author  :   piesat
 * @Version :   1.0
 * @Contact :   400-890-0662
 * @License :   (C)Copyright 航天宏图信息技术股份有限公司
 * @Desc    :   分组绘制
 */
var fCol = pie.FeatureCollection([
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '一季度',
        a: 10,
        b: 12.1,
        c: 20,
        warm: 1
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '二季度',
        a: 21,
        b: 9,
        c: 10,
        warm: 2
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '三季度',
        a: 13,
        b: 5.1,
        c: 8,
        warm: 0
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        label: '四季度',
        a: 7,
        b: 9.1,
        c: 13,
        warm: 1
    })
]);
var chart = ui.Chart.PIEFeature.groups({
    features: fCol,
    xProperty: "label",
    yProperty: "a",
    seriesProperty: "warm"
}).setChartType("column")
    .setSeriesNames(['A', "B", "C"])
    .setOptions({
        title: {
            name: "测试groups方法"
        },
        xAxis: {
            name: "日期"
        },
        yAxis: {
            name: "收入（百万）"
        },
        series: {
            0: {
                color: "red"
            },
            1: {
                color: "blue"
            },
            2: {
                color: "green"
            }
        }
    })
print(chart)

ui.Chart.PIEFeature.histogram

直方图统计绘制

函数	返回值
ui.Chart.PIEFeature.histogram(features,property,maxBuckets,minBucketWidth)	ui.Chart.PIEFeature.histogram

参数	类型	说明
features	Object|List	feature、featureCollection、list、矢量数据或者列表
property	List	统计属性
maxBuckets	Number	最大分组数
minBucketWidth	Number	每一组最小宽度

/**
 * @File    :   ui.Chart.PIEFeature.histogram
 * @Time    :   2022/2/14
 * @Author  :   piesat
 * @Version :   1.0
 * @Contact :   400-890-0662
 * @License :   (C)Copyright 航天宏图信息技术股份有限公司
 * @Desc    :   直方图统计绘制
 */
// 12, 14, 14, 14, 16, 18, 20, 20, 21, 23, 27, 27, 27, 29, 31,
// 31, 32, 32, 34, 36, 40, 40, 40, 40, 40, 42, 51, 56, 60, 65
var fCol = pie.FeatureCollection([
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 14
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 14
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 14
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 16
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 18
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 20
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 20
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 21
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 23
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 27
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 27
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 27
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 29
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 31
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 31
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 32
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 32
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 34
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 36
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 40
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 40
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 40
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 40
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 40
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 42
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 51
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 56
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 60
    }),
    pie.Feature(pie.Geometry.Point([
        115.85816308592939,
        39.91121360393521
    ]), {
        a: 65
    })
]);
var chart = ui.Chart.PIEFeature.histogram({
    features: fCol,
    property: "a"
}).setChartType("column")
    .setSeriesNames(['A'])
    .setOptions({
        title: {
            name: "测试histogram方法"
        },
        xAxis: {
            name: "类型"
        },
        yAxis: {
            name: "数量"
        },
        series: {
            0: {
                color: "red"
            }
        }
    })
print(chart)
